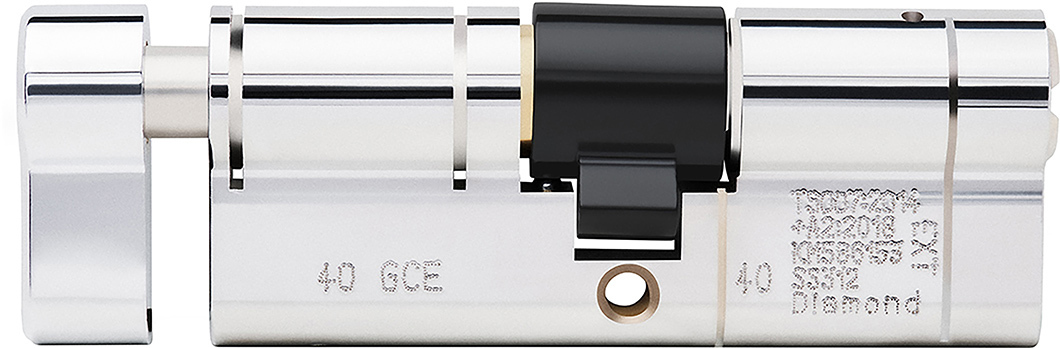

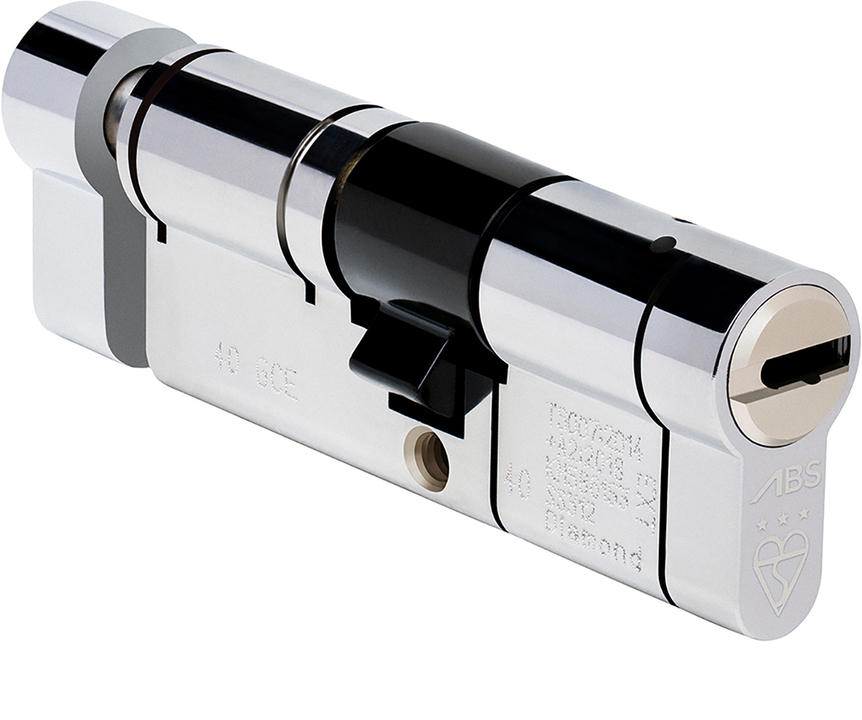

Avocet ABS Master 3 Star - Euro Thumbturn Cylinder 45 - 55 (100mm Polished Chrome)

Avocet ABS Master 3 Star - Euro Thumbturn Cylinder 45 - 55 (100mm Polished Chrome)
Zoom
£49.75
Customer Reviews
Rated 5.0

/5

Rated 5 / 5Rated 5 / 5Rated 5 / 5Rated 5 / 5Rated 5 / 5
3 Reviews

100%

Recommended
this Product
Ease of Use
Out of 5
5
Build Quality
Out of 5
5
Rated 5 / 5Rated 5 / 5Rated 5 / 5Rated 5 / 5Rated 5 / 5
Victoria Verified Customer

Perfect match for old broken lock cylinder, Instructions how to fit Excellent and accurate, Easy to find a correct replacement on the website, fast delivery. Reasonable price.

Read more
Rated 5 / 5Rated 5 / 5Rated 5 / 5Rated 5 / 5Rated 5 / 5
Anonymous Verified Customer

It is difficult to assess the actual level of security of this cylinder, but based on the certifications, it appears to be a strong choice.

Read more

See all reviews

View Full Specification
  • Diamond Grade anti-snap Euro profile double cylinder.
  • Anti-Snap protection by way of sacrificial snap section.
  • Employs Anti Pick, Anti Drill & Anti Bump for extra security.
  • Cylinder includes 6 anti-drill pins.
  • Police approved via Secured By Design initiative.
  • Maximum security TS007 3 Star Rated.
  • Cylinder Length: 100mm
  • Size to Centre (ext): 45mm
  • Size to Centre (int): 55mm
  • Multiple locks can be keyed alike allowing the same key to operate each lock.
MPN: DC8AMF5545PCT

Keyed Alike Cylinder Packs

Build Your Custom Pack >


Popular in Euro Profile Cylinders ...

View all Euro Profile Cylinders »

See all reviews

Details


Avocet ABS Master 3 Star Euro Cylinder

The Avocet ABS Master 3 Star Euro Double Cylinder offers maximum security and is Kitemarked to TS007:2014 with a 3 star rating. This lock is Secured By Design, which is the official Police security initiative and is also tested by the Master Locksmith Association. This anti-snap cylinder includes a sacrificial snap section and includes 3 high security dimple keys.

Avocet ABS Master 3 Star Euro Cylinder
TS007 3 Star Rating

TS007 3 Star Rating

The TS007 3 Star Rating is widely recognised as the highest security standard UK locks can conform to. TS007 3 star cylinders display the British Standard Kitemark and protect every form of attack including lock snapping and drilling. The British Standard Kitemark can help deter thieves. It's trusted worldwide and most insurance companies will insist your cylinders display it. Locks that display the Kitemark have been certified by the British Standards Institute (BSI), so you know that each product has been manufactured to a high standard.

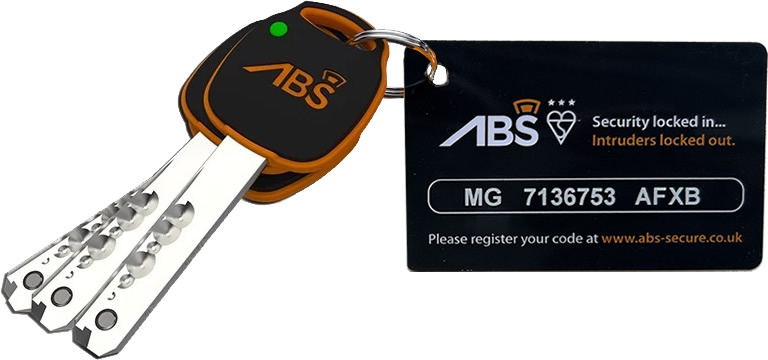

High Security Keys

Each cylinder pack comes with 3 high security double sided keys, with smooth edges, and can be used any side up, making these cylinders easy to use. You will also receive a unique key card which allows you to purchase additional keys securely.

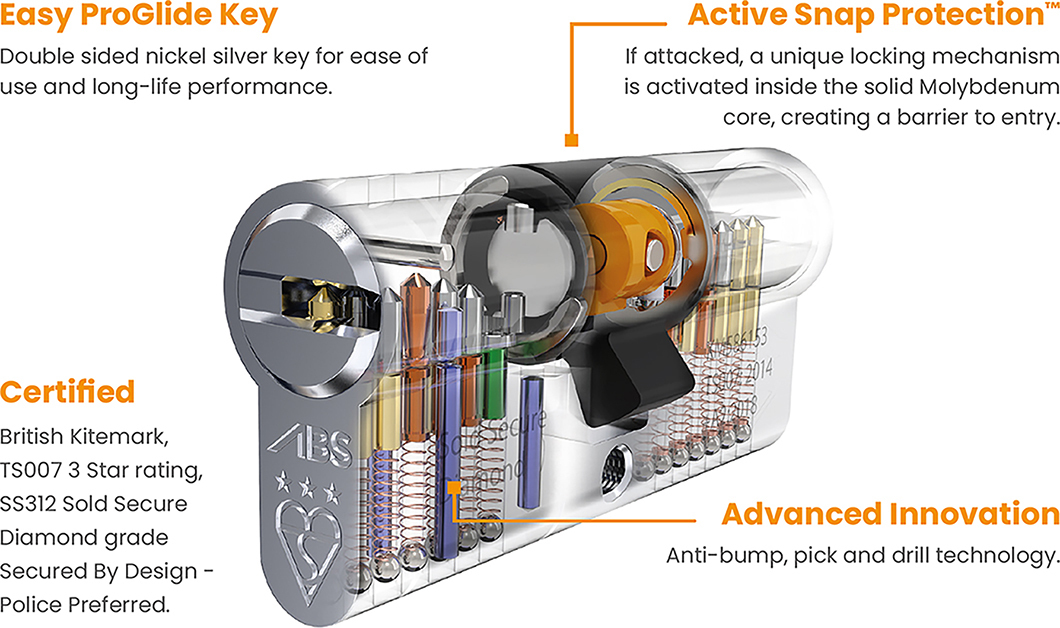

Active Snap Protection

Lock snapping is the most common form of attack that a burglar will use to break in to your home. Anti-snap cylinders include a sacrificial snap line. When force is applied, the cylinder snaps at this 'weak point' but the actual mechanism stays intact. The sacrificial snap line must face the outside of your door.

Drill Protection

The ABS Master 3 Star Cylinders include protection against lock drilling with 6 anti-drill pins, providing the ultimate resistance against forced attacks. Each lock is tested by the Master Locksmith Association's and has achieved the Sold Secure Diamond standard.

Drill Protection
Pins

Secured By Design

The ABS Master Cylinder is also Secured by Design, which is the official Police preferred specification for door security. ABS locks feature advanced technology to combat lock snapping, picking, drilling and bumping.

Product Diagram with Dimensions
A 45mm
B 55mm
C 100mm
Dimensions
Size Centre (external) 45mm
Size Centre (internal) 55mm
Overall Length 100mm
Weight
280 grams
Show Imperial »
Play Video How to measure a Euro Cylinder How to measure a Euro Cylinder
Key Features
Product Code
DC8AMF5545PCT
Manufacturer Part Number
DC8AMF5545PCT
Cylinder Type
Euro Double
Lock Mechanism
6 Pin Cylinder
Thumbturn
Yes
Equal / Offset
Offset
Colour
Polished Chrome
Security & Ratings
Security Level
Maximum
Anti-Snap
Yes Sacrificial Snap Line
Security Measures
Anti Pick, Pull, Drill & Bump
Code Card
Yes
Kitemarked
Yes
TS Star Rating
3 Star (TS007)
British Standard
BS EN 1303:2005
Fire Rating
No
Secured by Design
YesLicenced by Avocet
* Insurance approval may vary due to conditions and location. Please check with your insurance provider.
Features
Symmetrical Key
Yes
Manufacturer Warranty
10 Years
Keyed Alike
53 sizes available
In The Box
Cylinder
Yes
Retaining Screw
Yes
Keys
3
