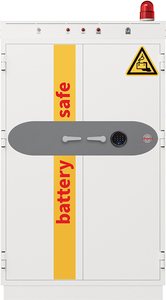

Phoenix Battery Commander Pro BS1946F

Phoenix Battery Commander Pro BS1946F
Zoom
£10114.84
£12,691.20
save £2,576.36 (20%)
Discount code JAN26
5% Off Everything
Code: JAN26
Designed for lithium-ion battery safety, the Battery Commander Pro by Phoenix meets VDMA 24994 certification and features built-in ventilation and thermal monitoring.
View Full Specification
  • Battery capacity per shelf 4500Wh.
  • Max safe battery capacity 22500Wh.
  • Certified to VDMA 24994:2024-08 standard.
  • Fire and impact 9.1 metre drop test.
  • Digital keypad with touch screen and 4-16 digit PIN.
  • Fingerprint locking with up to 32 fingerprints.
  • Also available with Key or Digital Keypad locking.
  • Fitted with a siren and strobe light in case of over heating.
  • 3 x Reinforced adjustable shelves.
  • 5 x 8-Way PDU plug sockets.
  • Weight: 610Kg, Size: 1910 x 1125 x 710mm (HxWxD)
MPN: BS1946F

Popular in Fireproof Lithium Ion Battery Storage Safes ...

View all Fireproof Lithium Ion Battery Storage Safes »
Details
The Phoenix Battery Commander Pro BS1946F is a high security storage cabinet designed to protect lithium-ion batteries, and the surrounding environment, should they catch fire. This large fire safe is certified to the VDMA 24994:2024-08 standard, it features robust safety measures including heat ventilation, a temperature monitor, and a built-in siren and strobe light that activate in case of overheating. It has passed a 9.1 metre fire and impact drop test and includes a high-security biometric fingerprint locking keypad. Internally, it offers three reinforced adjustable shelves, four 8-way PDU plug sockets, and supports up to a maximum safe capacity of up to 19000Wh (individual battery capacity up to 4750Wh).

Fire Protection

The Phoenix Battery Commander Pro delivers dual fire protection, safeguarding both your batteries and the surrounding environment. Tested and certifiead to VDMA 24994:2024-08, it provides protection for up to a maximum single battery capacity of 4750Wh and a total storage capacity of 19000Wh, containing potential thermal runaway or fire incidents within the safe. In addition, it is independently certified to NT Fire 017-120p, ensuring 120 minutes of fire protection from outside to in, keeping stored batteries secure in the event of an external fire.

Charging

This unit comes fitted with 5 x 8-gang PDU power sockets, allowing multiple lithium batteries to be charged simultaneously inside the safe. For added flexibility, an additional 4-gang PDU can be purchased and installed, providing even greater charging capacity to meet your operational needs.

Siren & Strobe

The unit is equipped with a siren and strobe light that will activate if overheating or thermal runaway is detected. In this situation, the power supply to the cabinet is automatically cut, stopping all charging until the safe has returned to its normal operating range.

Fingerprint Locking

This fingerprint locking model offers advanced biometric security with a built-in fingerprint reader. It can store up to 32 unique fingerprint scans, making it ideal for multi-user environments, while also providing fast, keyless access with just a touch.

Optional Extras

A selection of optional extras are available to enhance the safety, functionality, and flexibility of the Phoenix Battery Commander Pro...

  • Advanced heat and humidity sensor: links to a mobile app and alerts you if the maximum set temperature is breached.

  • Fire suppression kit: specially formulated condensed aerosol system for rapid and effective fire suppression, designed for lithium-ion batteries.

  • Additional 4-gang PDU plug sockets: increase charging capacity to suit your requirements.

  • Height-adjustable shelves: customise and organise the interior for maximum efficiency.


Dimensions
External
H 1910 W 1125 D 710 mm †
Internal
H 1505 W 945 D 400 mm
Weight
610 kg
Volume
569 ltr
† Add 40mm to external depth for hinges and handle.
Show Imperial »
Key Features
Manufacturer Part Number
BS1946F
Max Shelf Storage
4,500 Wh (per shelf)
Max Safe Storage
22,500 Wh (safe total)
Locks
Digital Keypad & Fingerprint
Also available with
Key Locking
Digital Keypad
Fixing Holes
None
Manufacturer Warranty
2 Years
More Sizes
Yes
Protection (Inside to Outside)
Certified
VDMA 24994:2024-08
Tested by ECBS
Warning Label Certification
  • ISO 3864
  • ISO 7010
  • 92/58/EEC
Protection (Outside to Inside)
Fire Protection
120 minutes
Fire Certificate
NT Fire 017 - 120P
Tested by SP - Sweden
Drop Test
9.1 meters
Digital Keypad & Fingerprint Lock
Display
Touch Screen
PIN Qty
2 (user changeable)
PIN Length
4 - 16 digits
Stored Fingerprints
32
Dual PIN Entry
Yes
Batteries
4x AAA (included)
Battery Location
External
Backup Entry
Master Reset
Time Delay
No
Battery Charging
Power Source
230v Single Phase
8 Way PDU
5
Total 3 Pin Sockets
40
Additional Sockets
Optional
Charging Method
Continuous
Circuit Protection
RCD Protected Sockets
Overheat Protection
Power Cut Off
Security & Construction

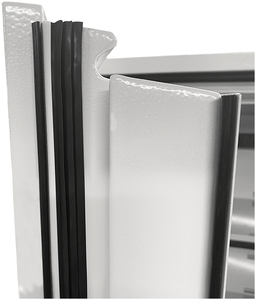

Intumescent Door Seals
Yes
Locking Bolts
9
Bolt Diameter
22mm
Hinges
External
Fixed Hinge Bolts
Yes
Construction
Double walled steel body and door filled with fire resistant barrier material.
Fittings
Shelves
3 (adjustable)
Fire Extinguisher
Optional
Siren
Yes
Strobe
Yes
Features
Ventilation System
Air Vents
Temperature Monitor
Warning Light
Humidty Monitor
Optional
Fire Alarm Connection
Yes
Open Door Alarm
Yes
Power Cable Hole
Yes
Interior Light
No
Guides
Product File
Download
User Guide
Download
Accessories

Add at Checkout

Thumbnail of Phoenix Adjustable Shelf

Adjustable Shelf

Customise the interior and make more economical use of your storage space with a height adjustable shelf.
£67.50
Thumbnail of Phoenix Automatic Fire Extinguisher

Automatic Fire Extinguisher

Specifically engineered condensed aerosol fire extinguisher for fast and effective suppression, designed for Lithium-Ion battery fires.
£1318.50
Thumbnail of Phoenix Heat & Humidty Monitor

Heat & Humidty Monitor

The safe can be equipped with an internal temperature and humidity monitor that connects to a mobile app and alerts you if the set temperature limit is exceeded.
£223.50
Thumbnail of Phoenix PDU with 4 sockets

PDU with 4 sockets

Add an additional PDU featuring 4 sockets, providing extra capacity to charge multiple batteries simultaneously and improve overall charging convenience.
£66.00
