- Locked using euro profile cylinder / thumbturn (sold separately).
- Latch opened by handle on either side.
- Suitable for left or right hung doors.
- High quality stainless steel square forend (round forend also available).
- 55mm backset from forend.
- 83mm deep case.
- 20mm bolt projection.

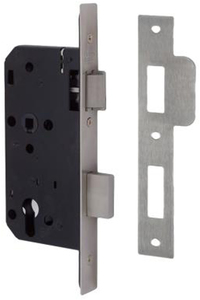

Union L2C21 DIN - Euro Cylinder Sashcase (83mm) SQ
- Details
-
Product Details
83mm
55mm
72mm
165mm
235mm
24mm
Show Imperial »Dimensions Case Depth83mm Backset55mm Centres72mm Case Height165mm Forend Length235mm Forend Width24mm Lock Mortice Type Sashcase Lock Mechanism Euro Cylinder Key Differs Dependant on cylinder Bolt Projection 20mm Latchbolt Reversible Follower 8mm Backset (keyhole) 55mm Forend Finish Stainless Steel Features Insurance Approved* Handed Left, Right In The Box Lock Case Strike Plate
